U-образные симметричные уплотнения RUB — размеры, артикулы и подбор
RUB — U-образное симметричное уплотнение для гидравлических цилиндров.
Подбор
Для замены сравните размеры, сечение профиля, материал и условия работы. Если обозначение отличается у другого производителя, профиль можно подобрать по геометрии и посадочному месту.
Характеристики
ПрофильRUB
Типсимметричное уплотнение
КатегорияШтоковые/поршневые уплотнения
ПроизводительTrelleborg
Размерных строк355
Материалпо коду материала / по условиям применения
Давлениедо 40 МПа
Температураот -30 °C до +80 °C
Скоростьдо 0.5 м/с
Быстрый подбор
Нужен аналог или поставка RUB? Пришлите артикул, размеры или фото профиля. Подберём решение по геометрии, материалу и условиям работы.
Получить подбор

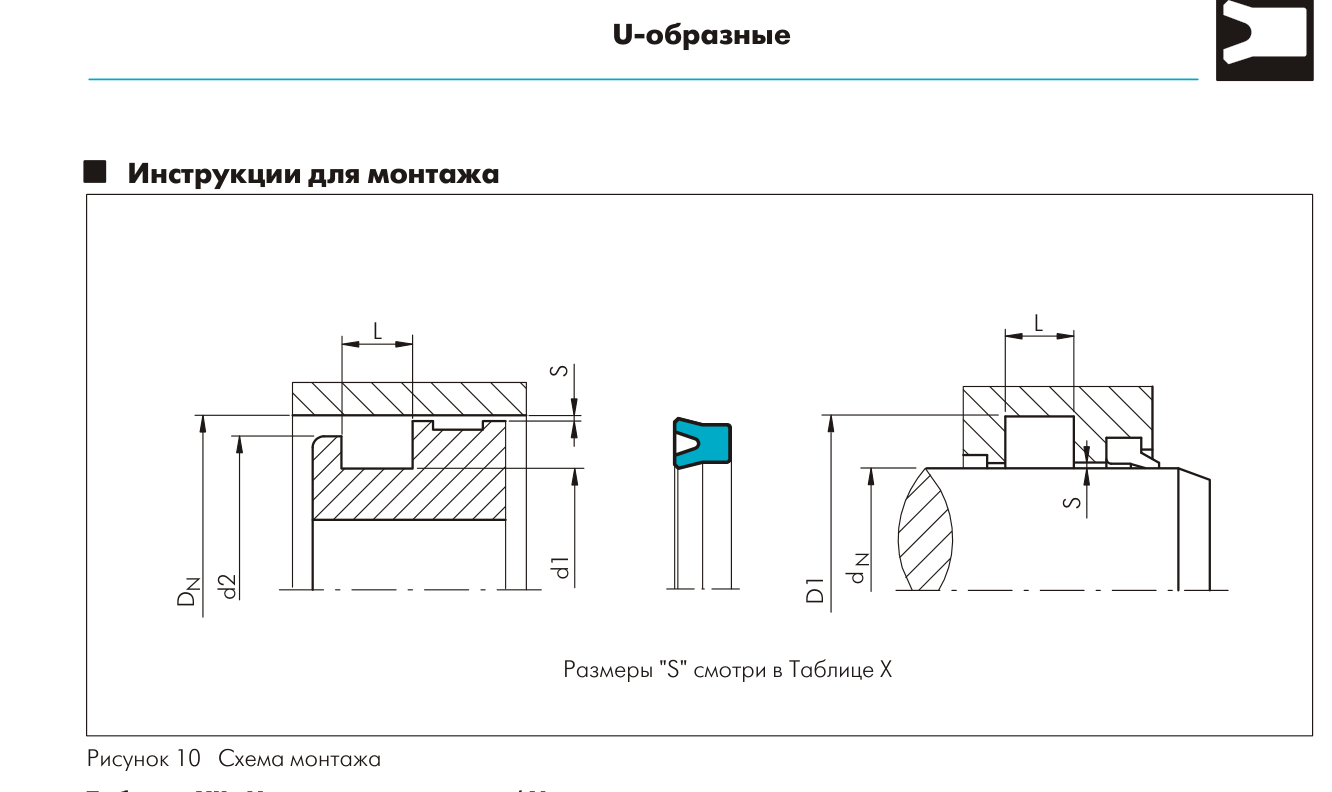

Размеры и артикулы U-образные симметричные уплотнения RUB
355 строк| Диаметр штока/ канавки | Диаметр цилиндра/ канавки | Ширина канавки | Диаметр | Полипак Кат. No | . No | TSS Кат. No | No по каталогу |
|---|---|---|---|---|---|---|---|
| 5.00 | 12.00 | 5.00 | 8.50 | MU/P 1205 | RUB000050 | ||
| 5.00 | 12.00 | 5.50 | 8.50 | RUB300050 | RUB300050 | ||
| 6.00 | 12.00 | 5.00 | 9.00 | MU/P 1206 | RUB300060 | ||
| 6.00 | 12.00 | 6.00 | 9.00 | RUB200060 | RUB200060 | ||
| 6.00 | 12.00 | 7.00 | 9.00 | RUB000060 | RUB000060 | ||
| 8.00 | 12.00 | 6.00 | 10.00 | RUBA00080 | RUBA00080 | ||
| 8.00 | 14.00 | 6.00 | 11.00 | RUB900080 | RUB900080 | ||
| 8.00 | 14.00 | 7.00 | 11.00 | RUB000080 | RUB000080 | ||
| 8.00 | 16.00 | 6.30 | 12.00 | RUB300080 | RUB300080 | ||
| 8.00 | 16.00 | 8.00 | 12.00 | RUB700080 | RUB700080 | ||
| 8.00 | 22.00 | 9.00 | 15.00 | RSS 8 22 | RUBB00080 | ||
| 9.00 | 15.00 | 9.00 | 12.00 | RSS 9 15 | RUB000090 | ||
| 9.00 | 19.00 | 7.00 | 14.00 | RSS 9 19 | RUB100090 | ||
| 10.00 | 16.00 | 6.50 | 13.00 | RSS 10 16 | RUB000100 | RUB000100 | |
| 10.00 | 18.00 | 6.00 | 14.00 | RSS 10 18/1 | RUB700100 | ||
| 10.00 | 18.00 | 6.30 | 14.00 | RUB600100 | RUB600100 | ||
| 10.00 | 18.00 | 7.00 | 14.00 | MU/P 1810 | RSS 10 18/2 | RUB800100 | |
| 10.00 | 18.00 | 9.00 | 14.00 | RSS 10 18 | RUB900100 | ||
| 10.00 | 20.00 | 8.00 | 15.00 | RUB500100 | RUB500100 | ||
| 10.00 | 20.00 | 9.00 | 15.00 | RSS 10 20 | RUB300100 | RUB300100 | |
| 10.00 | 22.00 | 7.00 | 16.00 | RSS 10 22 | RUBA00100 | ||
| 10.00 | 22.00 | 9.00 | 16.00 | RSS 10 22/1 | RUBB00100 | ||
| 11.00 | 17.00 | 5.00 | 14.00 | RSS 11 17 | RUB000110 | ||
| 11.00 | 20.50 | 7.00 | 15.75 | RSS 11 20.5 | RUB100110 | ||
| 12.00 | 18.00 | 5.50 | 15.00 | RSS 12 18/1 | RUBE00120 | ||
| 12.00 | 18.00 | 6.00 | 15.00 | MU/P 1812 | RUB600120 | ||
| 12.00 | 18.00 | 7.00 | 15.00 | RSS 12 18 | RUB000120 | RUB000120 | |
| 12.00 | 19.00 | 6.00 | 15.50 | RUBA00120 | RUBA00120 | ||
| 12.00 | 20.00 | 8.00 | 16.00 | MU/P 2012/1 | RSS 12 20/1 | RUBF00120 | |
| 12.00 | 20.00 | 9.00 | 16.00 | MU/P 2012 | RSS 1220 | RUBG00120 | |
| 12.00 | 22.00 | 6.00 | 17.00 | RSS 12 22/1 | RUB500120 | RUB500120 | |
| 12.00 | 22.00 | 8.00 | 17.00 | RSS 12 22 | RUB700120 | ||
| 12.00 | 22.00 | 9.00 | 17.00 | RSS 1222/2 | RUB800120 | ||
| 12.00 | 24.00 | 9.00 | 18.00 | RSS 12 24 | RUB900120 | ||
| 12.00 | 24.00 | 10.00 | 18.00 | RSS 12 24/1 | RUBB00120 | ||
| 12.00 | 25.00 | 9.00 | 18.50 | RSS 12 25 | RUBD00120 | ||
| 12.00 | 25.00 | 11.00 | 18.50 | MU/P 2512 | RSS 12 25/1 | RUBC00120 | |
| 14.00 | 20.00 | 5.30 | 17.00 | RSS 1420 | RUB000140 | RUB000140 | |
| 14.00 | 22.00 | 4.50 | 18.00 | RSS 14 22/3 | RUB800140 | ||
| 14.00 | 22.00 | 7.00 | 18.00 | RSS 14 22 | RUB100140 | RUB100140 | |
| 14.00 | 22.00 | 9.00 | 18.00 | RSS 14 22/1 | RUB600140 | ||
| 14.00 | 22.00 | 12.00 | 18.00 | RSS 14 22/2 | RUB500140 | ||
| 14.00 | 24.00 | 8.00 | 19.00 | RUB200140 | RUB200140 | ||
| 14.00 | 24.00 | 9.00 | 19.00 | MU/P 2414 | RSS 14 24 | RUB700140 | |
| 15.00 | 23.00 | 6.30 | 19.00 | RUB200150 | RUB200150 | ||
| 15.00 | 25.00 | 9.00 | 20.00 | RSS 15 25 | RUB000150 | RUB000150 | |
| 15.00 | 25.00 | 11.00 | 20.00 | MU/P 2515 | RSS 15 25/1 | RUB300150 | |
| 15.00 | 27.00 | 7.00 | 21.00 | RSS1527 | RUB500150 | ||
| 15.00 | 28.00 | 11.00 | 21.50 | RSS 1528 | RUB400150 | ||
| 16.00 | 22.00 | 4.50 | 19.00 | RSS 16 22/1 | RUB100160 | RUB100160 | |
| 16.00 | 22.00 | 5.00 | 19.00 | MU/P 2216 | RUB900160 | ||
| 16.00 | 22.00 | 5.50 | 19.00 | RSS 1622 | RUB800160 | ||
| 16.00 | 22.00 | 6.00 | 19.00 | RUB600160 | RUB600160 | ||
| 16.00 | 24.00 | 6.00 | 20.00 | RSS 1624/1 | RUBA00160 | ||
| 16.00 | 24.00 | 6.30 | 20.00 | RUB700160 | RUB700160 | ||
| 16.00 | 24.00 | 10.00 | 20.00 | MU/P 2416 | RSS1624 | RUBB00160 | |
| 16.00 | 26.00 | 6.00 | 21.00 | RSS1626 | RUB400160 | RUB400160 | |
| 16.00 | 26.00 | 9.00 | 21.00 | RSS 1626/1 | RUBC00160 | ||
| 16.00 | 26.00 | 11.00 | 21.00 | RSS1626/2 | RUBD00160 | ||
| 16.00 | 28.00 | 7.00 | 22.00 | RSS1628 | RUBE00160 | ||
| 16.00 | 32.00 | 9.00 | 24.00 | RSS1632 | RUBF00160 | ||
| 17.00 | 25.00 | 11.00 | 21.00 | RSS1725 | RUB000170 | ||
| 18.00 | 25.00 | 5.50 | 21.50 | RSS1825 | RUB800180 | ||
| 18.00 | 26.00 | 7.50 | 22.00 | MU/P 2618 | RSS1826/1 | RUB900180 | |
| 18.00 | 26.00 | 8.00 | 22.00 | RUB600180 | RUB600180 | ||
| 18.00 | 26.00 | 9.00 | 22.00 | RSS 1826/2 | RUBA00180 | ||
| 18.00 | 26.00 | 9.50 | 22.00 | RSS1826 | RUBB00180 | ||
| 18.00 | 28.00 | 6.30 | 23.00 | RUB700180 | RUB700180 | ||
| 18.00 | 28.00 | 9.00 | 23.00 | RSS1828 | RUBC00180 | ||
| 18.00 | 30.00 | 9.00 | 24.00 | RSS1830 | RUBD00180 | ||
| 19.00 | 25.00 | 7.00 | 22.00 | MU/P 2519 | RSS1925 | RUB000190 | |
| 20.00 | 26.00 | 5.50 | 23.00 | RUBB00200 | RUBB00200 | ||
| 20.00 | 28.00 | 5.00 | 24.00 | MU/P 2820 | RSS 20 28 | RUBC00200 | |
| 20.00 | 28.00 | 8.00 | 24.00 | RUB800200 | RUB800200 | ||
| 20.00 | 28.00 | 9.00 | 24.00 | RSS 20 28/1 | RUBD00200 | ||
| 20.00 | 29.00 | 5.50 | 24.50 | RSS 20 29 | RUBE00200 | ||
| 20.00 | 30.00 | 9.00 | 25.00 | MU/P 3020/1 | RSS 20 30 | RUB100200 | RUB100200 |
| 20.00 | 30.00 | 11.00 | 25.00 | MU/P 3020 | RSS 20 30/1 | RUB200200 | RUB200200 |
| 20.00 | 32.00 | 8.50 | 26.00 | RSS 20 32 | RUBF00200 | ||
| 20.00 | 35.00 | 13.00 | 27.50 | MU/P 3520 | RSS 20 35 | RUBK00200 | |
| 20.00 | 39.00 | 11.00 | 29.50 | RSS 20 39 | RUBG00200 | ||
| 20.00 | 40.00 | 11.00 | 30.00 | RSS 20 40 | RUBH00200 | ||
| 20.00 | 40.00 | 12.00 | 30.00 | MU/P 4020 | RUBJ00200 | ||
| 20.00 | 40.00 | 13.00 | 30.00 | RSS 20 40/1 | RUBI00200 | ||
| 22.00 | 28.00 | 5.00 | 25.00 | RUB000220 | RUB000220 | ||
| 22.00 | 28.00 | 9.00 | 25.00 | RSS 22 28 | RUBA00220 | ||
| 22.00 | 30.00 | 7.00 | 26.00 | RSS 22 30 | RUB100220 | RUB100220 | |
| 22.00 | 30.00 | 7.50 | 26.00 | MU/P 3022 | RUB700200 | ||
| 22.00 | 30.00 | 11.00 | 26.00 | RSS 22 30/1 | RUB600200 | ||
| 22.00 | 32.00 | 9.00 | 27.00 | MU/P 3222 | RSS 22 32 | RUB200220 | RUB200220 |
| 22.00 | 32.00 | 11.00 | 27.00 | RSS 22 32/1 | RUB800220 | ||
| 22.00 | 35.00 | 11.00 | 28.50 | MU/P 3522 | RSS 22 35 | RUB400220 | |
| 22.00 | 40.00 | 11.00 | 31.00 | RSS 22 40 | RUB900220 | ||
| 23.00 | 30.00 | 7.50 | 26.50 | RSS 23 30 | RUB000230 | ||
| 24.00 | 32.00 | 7.50 | 28.00 | MU/P 3224/1 | RUB100240 | ||
| 24.00 | 32.00 | 8.00 | 28.00 | RSS 24 32 | RUB000240 | ||
| 24.00 | 40.00 | 9.00 | 32.00 | RSS 24 40 | RUB200240 | ||
| 25.00 | 33.00 | 7.50 | 29.00 | MU/P 3325 | RUBA00250 | ||
| 25.00 | 35.00 | 5.50 | 30.00 | RSS 25 35 | RUBB00250 | ||
| 25.00 | 35.00 | 6.00 | 30.00 | RUB500250 | RUB500250 | ||
| 25.00 | 35.00 | 7.00 | 30.00 | MU/P 3525/W | RUB700250 | ||
| 25.00 | 35.00 | 9.00 | 30.00 | MU/P 3525/1 | RSS 25 35/2 | RUB200250 | RUB200250 |
| 25.00 | 35.00 | 11.00 | 30.00 | MU/P 3525 | RSS 25 35/1 | RUB100250 | RUB100250 |
| 25.00 | 38.00 | 11.00 | 31.50 | MU/P 3825 | RSS 25 38 | RUB800250 | |
| 25.00 | 40.00 | 11.00 | 32.50 | RSS 25 40 | RUB400250 | RUB400250 | |
| 28.00 | 35.00 | 5.50 | 31.50 | RSS 28 35 | RUB600280 | ||
| 28.00 | 36.00 | 7.50 | 32.00 | MU/P 3628 | RSS 28 36 | RUB500280 | |
| 28.00 | 38.00 | 6.30 | 33.00 | RUB400280 | RUB400280 | ||
| 28.00 | 38.00 | 9.00 | 33.00 | RSS 28 38 | RUB100280 | RUB100280 | |
| 28.00 | 40.00 | 11.00 | 34.00 | RSS 28 40 | RUB200280 | RUB200280 | |
| 29.00 | 40.00 | 11.00 | 34.50 | RUB000290 | RUB000290 | ||
| 30.00 | 38.00 | 6.50 | 34.00 | RSS 30 38 | RUBB00300 | ||
| 30.00 | 38.00 | 7.00 | 34.00 | RUB800300 | RUB800300 | ||
| 30.00 | 38.00 | 8.00 | 34.00 | MU/P 3830 | RUBC00300 | ||
| 30.00 | 40.00 | 5.50 | 35.00 | RSS 30 40/1 | RUBD00300 | ||
| 30.00 | 40.00 | 8.00 | 35.00 | RUB900300 | RUB900300 | ||
| 30.00 | 40.00 | 10.00 | 35.00 | MU/P 4030 | RUBE00300 | ||
| 30.00 | 40.00 | 11.00 | 35.00 | RSS 30 40 | RUB100300 | RUB100300 | |
| 30.00 | 42.00 | 10.00 | 36.00 | MU/P 4230 | RSS 30 42/1 | RUBI00300 | |
| 30.00 | 42.00 | 11.00 | 36.00 | RSS 30 42 | RUB300300 | RUB300300 | |
| 30.00 | 45.00 | 10.00 | 37.50 | MU/P 4530 | RUBF00300 | ||
| 30.00 | 45.00 | 11.00 | 37.50 | MU/P 4530/1 | RSS 30 45 | RUB500300 | RUB500300 |
| 30.00 | 50.00 | 11.00 | 40.00 | RSS 30 50/1 | RUBG00300 | ||
| 30.00 | 50.00 | 13.00 | 40.00 | RSS 30 50 | RUBH00300 | ||
| 32.00 | 40.00 | 6.00 | 36.00 | MU/P 4032/1 | RSS 32 40 | RUB800320 | |
| 32.00 | 40.00 | 6.30 | 36.00 | RUB000320 | RUB000320 | ||
| 32.00 | 40.00 | 6.50 | 36.00 | MU/P 4032 | RUBB00320 | ||
| 32.00 | 40.00 | 9.00 | 36.00 | RSS 32 40/1 | RUB700320 | ||
| 32.00 | 42.00 | 8.00 | 37.00 | RUB600320 | RUB600320 | ||
| 32.00 | 42.00 | 11.00 | 37.00 | MU/P 4232 | RSS 32 42 | RUB200320 | RUB200320 |
| 32.00 | 45.00 | 11.00 | 38.50 | RSS 32 45 | RUB900320 | ||
| 32.00 | 50.00 | 13.00 | 41.00 | RSS 32 50 | RUBA00320 | ||
| 33.00 | 43.00 | 7.00 | 38.00 | RUB000330 | RUB000330 | ||
| 34.00 | 45.00 | 8.00 | 39.50 | RSS 34 45 | RUB300340 | ||
| 34.00 | 45.00 | 10.00 | 39.50 | MU/P 4534 | RSS 34 45/1 | RUB200340 | |
| 34.00 | 50.00 | 15.00 | 42.00 | RSS 34 50 | RUB400340 | ||
| 35.00 | 45.00 | 8.00 | 40.00 | MU/P 4535/W | RUB200350 | RUB200350 | |
| 35.00 | 45.00 | 9.00 | 40.00 | RSS 35 45/1 | RUB100350 | RUB100350 | |
| 35.00 | 45.00 | 11.00 | 40.00 | RSS 35 45 | RUB000350 | RUB000350 | |
| 35.00 | 48.00 | 11.00 | 41.50 | RSS 35 48 | RUB700350 | RUB700350 | |
| 35.00 | 50.00 | 11.00 | 42.50 | RSS 35 50 | RUB300350 | RUB300350 | |
| 35.00 | 55.00 | 11.00 | 45.00 | RSS 35 55/1 | RUB500350 | RUB500350 | |
| 35.00 | 55.00 | 13.00 | 45.00 | RSS 35 55 | RUB400350 | RUB400350 | |
| 36.00 | 46.00 | 8.00 | 41.00 | MU/P 4636 | RSS 36 46 | RUB000360 | |
| 36.00 | 48.00 | 9.00 | 42.00 | MU/P 4836 | RUB200360 | ||
| 36.00 | 51.00 | 11.00 | 43.50 | RUB100360 | RUB100360 | ||
| 36.00 | 70.00 | 11.00 | 53.00 | RSS 36 70 | RUB300360 | ||
| 38.00 | 45.00 | 5.50 | 41.50 | RSS 38 45 | RUB100380 | RUB100380 | |
| 38.00 | 46.00 | 7.50 | 42.00 | MU/P 4638 | RSS 38 46 | RUB600380 | RUB600380 |
| 38.00 | 50.00 | 10.00 | 44.00 | RSS 38 50 | RUB900380 | ||
| 38.00 | 55.00 | 11.00 | 46.50 | RSS 38 55 | RUB700380 | ||
| 38.00 | 58.00 | 11.00 | 48.00 | RSS 38 58 | RUB800380 | ||
| 40.00 | 48.00 | 12.00 | 44.00 | RSS 40 48 | RUBG00400 | ||
| 40.00 | 50.00 | 7.00 | 45.00 | RUB900400 | RUB900400 | ||
| 40.00 | 50.00 | 7.50 | 45.00 | MU/P 5040 | RSS 40 50/1 | RUBH00400 | |
| 40.00 | 50.00 | 9.00 | 45.00 | RSS 40 50/2 | RUB400400 | RUB400400 | |
| 40.00 | 50.00 | 11.00 | 45.00 | MU/P 5040/1 | RSS 40 50 | RUB100400 | RUB100400 |
| 40.00 | 52.00 | 9.00 | 46.00 | MU/P 5240 | RUBI00400 | ||
| 40.00 | 52.00 | 10.00 | 46.00 | RUBE00400 | RUBE00400 | ||
| 40.00 | 52.00 | 11.00 | 46.00 | RUBF00400 | RUBF00400 | ||
| 40.00 | 55.00 | 11.00 | 47.50 | MU/P 5540 | RSS 40 55 | RUB500400 | RUB500400 |
| 40.00 | 56.00 | 11.00 | 48.00 | RSS 40 56 | RUB600400 | RUB600400 | |
| 40.00 | 60.00 | 11.00 | 50.00 | RSS 40 60/1 | RUB800400 | RUB800400 | |
| 40.00 | 60.00 | 13.00 | 50.00 | RUBB00400 | RUBB00400 | ||
| 40.00 | 60.00 | 14.00 | 50.00 | RSS 40 60 | RUBK00400 | ||
| 40.00 | 60.00 | 19.00 | 50.00 | RSS 40 60/2 | RUBJ00400 | ||
| 40.00 | 65.00 | 13.00 | 52.50 | RSS 40 65 | RUBC00400 | ||
| 40.00 | 70.00 | 16.00 | 55.00 | RSS 40 70 | RUBL00400 | ||
| 40.00 | 75.00 | 11.00 | 57.50 | RSS 40 75 | RUBM00400 | ||
| 40.80 | 50.80 | 7.70 | 45.80 | MU/P 5141 | RUB000408 | ||
| 42.00 | 50.00 | 9.00 | 46.00 | MU/P 5042 | RSS 42 50 | RUB000420 | |
| 42.00 | 52.00 | 10.00 | 47.00 | RSS 42 52 | RUB100420 | ||
| 42.00 | 62.00 | 13.00 | 52.00 | RSS 42 62 | RUB200420 | ||
| 45.00 | 53.00 | 7.50 | 49.00 | MU/P 5345 | RUB700450 | ||
| 45.00 | 55.00 | 7.50 | 50.00 | MU/P 5545 | RSS 45 55/1 | RUB100450 | |
| 45.00 | 55.00 | 9.00 | 50.00 | RUB600450 | RUB600450 | ||
| 45.00 | 55.00 | 11.00 | 50.00 | MU/P 5545/1 | RSS 45 55 | RUB000450 | RUB000450 |
| 45.00 | 57.70 | 10.50 | 51.35 | MU/P 5745 | RUB800450 | ||
| 45.00 | 60.00 | 11.00 | 52.50 | MU/P 6045 | RSS 45 60 | RUB200450 | RUB200450 |
| 45.00 | 63.00 | 11.00 | 54.00 | RSS 45 63 | RUB900450 | ||
| 45.00 | 65.00 | 11.00 | 55.00 | RSS 45 65 | RUB400450 | RUB400450 | |
| 45.00 | 65.00 | 13.00 | 55.00 | RSS 45 65/1 | RUB500450 | RUB500450 | |
| 48.00 | 58.00 | 11.00 | 53.00 | RSS 48 58 | RUB000480 | ||
| 50.00 | 60.00 | 11.00 | 55.00 | MU/P 6050 | RSS 50 60 | RUB000500 | RUB000500 |
| 50.00 | 60.00 | 12.00 | 55.00 | MU/P 6050/1 | RSS 50 60/1 | RUB900500 | |
| 50.00 | 62.00 | 10.00 | 56.00 | MU/P 6250 | RSS 50 62 | RUBA00500 | |
| 50.00 | 63.00 | 7.00 | 56.50 | RSS 50 63 | RUB700500 | ||
| 50.00 | 65.00 | 11.00 | 57.50 | MU/P 6550/1 | RSS 50 65 | RUB200500 | RUB200500 |
| 50.00 | 70.00 | 11.00 | 60.00 | RSS 50 70 | RUB500500 | RUB500500 | |
| 50.00 | 70.00 | 13.00 | 60.00 | MU/P 7050 | RSS 50 70/1 | RUB600500 | RUB600500 |
| 50.00 | 70.00 | 19.00 | 60.00 | RSS 50 70/2 | RUB800500 | ||
| 52.00 | 62.00 | 11.00 | 57.00 | RUB100520 | RUB100520 | ||
| 52.00 | 62.00 | 13.00 | 57.00 | MU/P 6252 | RSS 52 62 | RUB200520 | |
| 53.00 | 63.00 | 7.50 | 58.00 | MU/P 6353 | RSS 53 63 | RUB100530 | RUB100530 |
| 55.00 | 65.00 | 11.00 | 60.00 | MU/P 6555/1 | RSS 55 65/1 | RUB100550 | RUB100550 |
| 55.00 | 65.00 | 13.00 | 60.00 | MU/P 6555 | RSS 55 65 | RUB000550 | RUB000550 |
| 55.00 | 70.00 | 11.00 | 62.50 | MU/P 7055 | RUB500550 | RUB500550 | |
| 55.00 | 70.00 | 13.00 | 62.50 | RSS 55 70 | RUB200550 | RUB200550 | |
| 55.00 | 75.00 | 11.00 | 65.00 | MU/P 7555 | RUB600550 | ||
| 55.00 | 75.00 | 13.00 | 65.00 | RSS 55 75 | RUB300550 | RUB300550 | |
| 55.00 | 80.00 | 13.00 | 67.50 | MU/P 8055 | RSS 55 80 | RUB700550 | |
| 56.00 | 66.00 | 11.00 | 61.00 | RUB000560 | RUB000560 | ||
| 56.00 | 71.00 | 11.00 | 63.50 | MU/P 7156 | RUB200560 | ||
| 56.00 | 76.00 | 13.00 | 66.00 | RUB100560 | RUB100560 | ||
| 60.00 | 70.00 | 8.00 | 65.00 | RUBA00600 | RUBA00600 | ||
| 60.00 | 70.00 | 9.00 | 65.00 | MU/P 7060 | RSS 60 70/1 | RUB100600 | RUB100600 |
| 60.00 | 70.00 | 11.00 | 65.00 | RSS 60 70/2 | RUB200600 | RUB200600 | |
| 60.00 | 70.00 | 13.00 | 65.00 | MU/P 7060/1 | RSS 60 70 | RUB000600 | RUB000600 |
| 60.00 | 70.00 | 15.00 | 65.00 | MU/P 7060/S | RUBB00600 | ||
| 60.00 | 75.00 | 11.00 | 67.50 | RSS 60 75/1 | RUBF00600 | ||
| 60.00 | 75.00 | 13.00 | 67.50 | MU/P 7560 | RSS 60 75 | RUB300600 | RUB300600 |
| 60.00 | 80.00 | 11.00 | 70.00 | RSS 60 80 | RUB500600 | RUB500600 | |
| 60.00 | 80.00 | 13.00 | 70.00 | RSS 60 80/1 | RUB600600 | RUB600600 | |
| 60.00 | 80.00 | 19.00 | 70.00 | RSS 60 80/2 | RUBE00600 | ||
| 60.00 | 85.00 | 13.50 | 72.50 | RSS 60 85 | RUBD00600 | ||
| 60.00 | 90.00 | 16.00 | 75.00 | MU/P 9060 | RSS 60 90 | RUBC00600 | |
| 63.00 | 73.00 | 11.00 | 68.00 | RUB300630 | RUB300630 | ||
| 63.00 | 75.00 | 11.00 | 69.00 | RSS 63 75 | RUB000630 | RUB000630 | |
| 63.00 | 75.00 | 13.00 | 69.00 | RUB400630 | RUB400630 | ||
| 63.00 | 78.00 | 11.00 | 70.50 | RSS 63 78 | RUB600630 | ||
| 63.00 | 78.00 | 13.00 | 70.50 | MU/P 7863 | RUB700630 | ||
| 63.00 | 80.00 | 11.00 | 71.50 | MU/P 8063 | RUB800630 | ||
| 63.00 | 83.00 | 13.00 | 73.00 | RUB500630 | RUB500630 | ||
| 63.00 | 83.00 | 16.00 | 73.00 | RSS 63 83 | RUB900630 | ||
| 65.00 | 75.00 | 13.00 | 70.00 | MU/P 7565 | RSS 65 75 | RUB000650 | RUB000650 |
| 65.00 | 80.00 | 11.00 | 72.50 | RUB500650 | RUB500650 | ||
| 65.00 | 80.00 | 12.00 | 72.50 | RSS 65 80/1 | RUB600650 | ||
| 65.00 | 80.00 | 13.00 | 72.50 | MU/P 8065 | RSS 65 80 | RUB100650 | RUB100650 |
| 65.00 | 85.00 | 11.00 | 75.00 | RSS 65 85/1 | RUB700650 | ||
| 65.00 | 85.00 | 13.00 | 75.00 | MU/P 8565 | RSS 65 85 | RUB300650 | RUB300650 |
| 66.00 | 76.00 | 9.00 | 71.00 | RSS 66 76 | RUB000660 | ||
| 66.00 | 80.00 | 11.00 | 73.00 | RSS 66 80 | RUB100660 | ||
| 66.00 | 80.00 | 14.00 | 73.00 | RSS 66 80/1 | RUB200660 | ||
| 67.00 | 77.00 | 11.00 | 72.00 | RSS 67 77/1 | RUB100670 | ||
| 67.00 | 77.00 | 13.00 | 72.00 | MU/P 7767 | RSS 67 77 | RUB000670 | |
| 69.85 | 88.90 | 12.70 | 79.38 | RSS 69.85 88.90 | RUB000698 | ||
| 70.00 | 80.00 | 6.00 | 75.00 | RSS 70 80/3 | RUB900700 | ||
| 70.00 | 80.00 | 8.00 | 75.00 | RUB700700 | RUB700700 | ||
| 70.00 | 80.00 | 9.00 | 75.00 | MU/P 8070 | RSS 70 80/1 | RUBA00700 | |
| 70.00 | 80.00 | 11.00 | 75.00 | RSS 70 80/2 | RUB200700 | RUB200700 | |
| 70.00 | 80.00 | 13.00 | 75.00 | MU/P 8070/1 | RSS 70 80 | RUB000700 | RUB000700 |
| 70.00 | 85.00 | 11.00 | 77.50 | MU/P 8570 | RUB400700 | RUB400700 | |
| 70.00 | 85.00 | 13.00 | 77.50 | RSS 70 85 | RUB300700 | RUB300700 | |
| 70.00 | 90.00 | 13.00 | 80.00 | MU/P 9070 | RSS 70 90 | RUB500700 | RUB500700 |
| 70.00 | 90.00 | 19.00 | 80.00 | RSS 70 90/1 | RUBB00700 | ||
| 75.00 | 85.00 | 11.00 | 80.00 | RUB500750 | RUB500750 | ||
| 75.00 | 85.00 | 13.00 | 80.00 | MU/P 8575 | RSS 75 85 | RUB000750 | RUB000750 |
| 75.00 | 90.00 | 8.50 | 82.50 | RSS 75 90 | RUB800750 | ||
| 75.00 | 90.00 | 11.00 | 82.50 | MU/P 9075 | RSS 75 90/2 | RUBA00750 | |
| 75.00 | 90.00 | 13.00 | 82.50 | RSS 75 90/1 | RUB900750 | ||
| 75.00 | 95.00 | 13.00 | 85.00 | RSS 75 95 | RUB400750 | RUB400750 | |
| 75.00 | 95.00 | 14.50 | 85.00 | MU/P 9575 | RUB700750 | ||
| 75.00 | 95.50 | 12.00 | 85.25 | MU/P 9575/X | RUB600750 | ||
| 76.50 | 96.50 | 13.00 | 86.50 | MU/P 9676 | RUB000765 | ||
| 78.00 | 86.00 | 13.50 | 82.00 | MU/P 8678 | RUB200780 | ||
| 78.00 | 88.00 | 15.00 | 83.00 | MU/P 8878/S | RUB100780 | ||
| 78.00 | 93.00 | 11.50 | 85.50 | RSS 78 93 | RUB000780 | ||
| 80.00 | 90.00 | 8.00 | 85.00 | RUB500800 | RUB500800 | ||
| 80.00 | 90.00 | 11.00 | 85.00 | RSS 80 90 | RUB000800 | RUB000800 | |
| 80.00 | 90.00 | 13.00 | 85.00 | RSS 80 90/1 | RUB600800 | ||
| 80.00 | 95.00 | 13.00 | 87.50 | RSS 80 95 | RUB700800 | ||
| 80.00 | 100.00 | 11.00 | 90.00 | RSS 80 100 | RUB900800 | ||
| 80.00 | 100.00 | 13.00 | 90.00 | MU/P 10080 | RSS 80 100/1 | RUB400800 | RUB400800 |
| 82.00 | 92.00 | 11.00 | 87.00 | RSS 82 92 | RUB000820 | ||
| 82.55 | 101.60 | 10.50 | 92.08 | MU/P 10182 | RUB000825 | ||
| 84.50 | 94.00 | 8.80 | 89.25 | RSS 84.5 94 | RUB000845 | ||
| 85.00 | 95.00 | 9.50 | 90.00 | MU/P 9585 | RSS 85 95 | RUB500850 | |
| 85.00 | 95.00 | 13.00 | 90.00 | RSS 85 95/1 | RUB100850 | RUB100850 | |
| 85.00 | 95.50 | 8.50 | 90.25 | MU/P 9585/X | RUB600850 | ||
| 85.00 | 100.00 | 10.00 | 92.50 | RSS 85 100/2 | RUB700850 | ||
| 85.00 | 100.00 | 12.00 | 92.50 | RSS 85 100/1 | RUB400850 | RUB400850 | |
| 85.00 | 100.00 | 13.00 | 92.50 | MU/P 10085 | RSS 85 100 | RUB200850 | RUB200850 |
| 85.00 | 105.00 | 13.00 | 95.00 | MU/P 10585/1 | RSS 85 105 | RUB800850 | |
| 85.00 | 115.00 | 16.00 | 100.00 | RSS 85 115 | RUB900850 | ||
| 90.00 | 100.00 | 8.00 | 95.00 | RSS 90 100/2 | RUB500900 | ||
| 90.00 | 100.00 | 9.00 | 95.00 | MU/P 10090 | RSS 90 100 | RUB600900 | |
| 90.00 | 100.00 | 11.50 | 95.00 | MU/P 10090/1 | RUB700900 | ||
| 90.00 | 100.00 | 13.00 | 95.00 | RSS 90 100/1 | RUB100900 | RUB100900 | |
| 90.00 | 105.00 | 13.00 | 97.50 | MU/P 10590 | RSS 90 105 | RUB800900 | |
| 90.00 | 110.00 | 13.00 | 100.00 | MU/P 11090 | RSS 90110 | RUB300900 | RUB300900 |
| 90.00 | 110.00 | 19.00 | 100.00 | RSS 90 110/1 | RUB400900 | ||
| 90.00 | 115.00 | 23.00 | 102.50 | RSS 90115 | RUB900900 | ||
| 95.00 | 105.00 | 13.00 | 100.00 | MU/P 10595 | RUB600950 | ||
| 95.00 | 110.00 | 13.00 | 102.50 | RSS 95 110 | RUB000950 | ||
| 95.00 | 110.00 | 13.50 | 102.50 | RUB500950 | RUB500950 | ||
| 95.00 | 110.00 | 16.00 | 102.50 | RSS 95 110/1 | RUB300950 | ||
| 95.00 | 112.00 | 12.00 | 103.50 | RSS 95112 | RUB700950 | ||
| 95.00 | 115.00 | 13.00 | 105.00 | MU/P 11595 | RSS 95 115 | RUB800950 | |
| 95.00 | 115.00 | 19.00 | 105.00 | RSS 95 115/1 | RUB400950 | ||
| 99.00 | 109.00 | 15.00 | 104.00 | MU/P 10999/S | RUB000990 | ||
| 100.00 | 115.00 | 13.00 | 107.50 | MU/P 115100 | RSS 100 115 | RUB501000 | |
| 100.00 | 120.00 | 13.00 | 110.00 | MU/P 120100 | RSS 100 120 | RUB101000 | RUB101000 |
| 100.00 | 125.00 | 13.00 | 112.50 | RSS 100 125 | RUB201000 | ||
| 100.00 | 125.00 | 16.00 | 112.50 | RSS 100 125/1 | RUB301000 | ||
| 100.00 | 130.00 | 13.00 | 115.00 | MU/P 130110/1 | RSS 100 130 | RUB401000 | |
| 105.00 | 120.00 | 9.00 | 112.50 | RSS 105120 | RUB001050 | ||
| 105.00 | 120.00 | 16.00 | 112.50 | RSS 105 120/1 | RUB101050 | ||
| 105.00 | 125.00 | 13.00 | 115.00 | RSS 105 125/1 | RUB201050 | ||
| 105.00 | 125.00 | 16.00 | 115.00 | RSS 105 125 | RUB301050 | ||
| 106.00 | 120.00 | 9.50 | 113.00 | RSS 106120 | RUB001060 | ||
| 110.00 | 125.00 | 13.00 | 117.50 | RSS 110 125 | RUB401100 | ||
| 110.00 | 125.00 | 16.00 | 117.50 | RSS 110125/1 | RUB501100 | ||
| 110.00 | 130.00 | 16.00 | 120.00 | MU/P 130110 | RSS 110 130 | RUB301100 | RUB301100 |
| 110.00 | 130.00 | 19.00 | 120.00 | RSS 110130/1 | RUB601100 | ||
| 113.00 | 125.00 | 10.50 | 119.00 | MU/P 125113 | RSS 113 125 | RUB001130 | |
| 115.00 | 126.00 | 16.00 | 120.50 | MU/P 126115 | RSS 115 126 | RUB001150 | |
| 115.00 | 135.00 | 16.00 | 125.00 | MU/P 135115 | RSS 115135 | RUB101150 | |
| 115.00 | 140.00 | 16.00 | 127.50 | RSS 115 140/1 | RUB201150 | ||
| 115.00 | 140.00 | 23.00 | 127.50 | RSS 115 140 | RUB301150 | ||
| 120.00 | 130.00 | 15.00 | 125.00 | MU/P 130120/S | RSS 120 130 | RUB001200 | |
| 120.00 | 135.00 | 16.00 | 127.50 | MU/P 135120 | RSS 120 135 | RUB301200 | |
| 120.00 | 140.00 | 13.00 | 130.00 | MU/P 140120 | RUB401200 | ||
| 120.00 | 140.00 | 16.00 | 130.00 | RSS 120 140 | RUB201200 | RUB201200 | |
| 125.00 | 140.00 | 12.00 | 132.50 | MU/P 140125 | RSS 125 140 | RUB001250 | |
| 125.00 | 140.00 | 16.00 | 132.50 | RSS 125 140/1 | RUB101250 | ||
| 125.00 | 145.00 | 16.00 | 135.00 | RSS 125 145 | RUB201250 | ||
| 125.00 | 145.00 | 19.00 | 135.00 | RSS 125 145/1 | RUB301250 | ||
| 125.00 | 155.00 | 16.00 | 140.00 | RSS 125 155 | RUB401250 | ||
| 130.00 | 150.00 | 16.00 | 140.00 | RSS 130 150 | RUB001300 | ||
| 135.00 | 150.00 | 16.00 | 142.50 | RSS 135 150 | RUB201350 | RUB201350 | |
| 135.00 | 155.00 | 16.00 | 145.00 | RSS 135155 | RUB301350 | ||
| 135.00 | 160.00 | 16.00 | 147.50 | RSS 135 160 | RUB401350 | ||
| 140.00 | 155.00 | 16.00 | 147.50 | RSS 140 155/AI | RUB101400 | ||
| 140.00 | 160.00 | 13.00 | 150.00 | RSS 140 160/1 | RUB201400 | ||
| 140.00 | 160.00 | 16.00 | 150.00 | RSS 140 160 | RUB301400 | ||
| 141.00 | 151.00 | 15.00 | 146.00 | MU/P 151141/S | RUB001410 | ||
| 145.00 | 165.00 | 16.00 | 155.00 | RSS 145 165 | RUB001450 | ||
| 148.00 | 160.00 | 10.50 | 154.00 | MU/P 160148 | RUB001480 | ||
| 150.00 | 160.00 | 13.00 | 155.00 | MU/P 160150 | RUB201500 | ||
| 150.00 | 170.00 | 16.00 | 160.00 | RSS 150 170 | RUB301500 | ||
| 150.00 | 170.00 | 19.00 | 160.00 | RSS 150 170/1 | RUB101500 | ||
| 154.00 | 169.00 | 12.00 | 161.50 | MU/P 169154 | RUB001540 | ||
| 160.00 | 180.00 | 16.00 | 170.00 | RSS 160 180 | RUB001600 | RUB001600 | |
| 162.00 | 172.00 | 15.00 | 167.00 | MU/P 172162/S | RUB001620 | ||
| 170.00 | 190.00 | 16.00 | 180.00 | RSS 170 190 | RUB101700 | ||
| 170.00 | 200.00 | 19.00 | 185.00 | RSS 170200 | RUB001700 | ||
| 175.00 | 200.00 | 16.00 | 187.50 | RSS 175200 | RUB001750 | ||
| 180.00 | 200.00 | 16.00 | 190.00 | RSS 180200 | RUB001800 | ||
| 180.00 | 220.00 | 21.00 | 200.00 | RSS 180220 | RUB101800 | ||
| 183.00 | 193.00 | 15.00 | 188.00 | MU/P 193183/S | RUB001830 | ||
| 187.00 | 202.00 | 12.00 | 194.50 | MU/P 202187 | RUB001870 | ||
| 200.00 | 225.00 | 19.00 | 212.50 | RSS 200 225 | RUB002000 | ||
| 207.00 | 217.00 | 15.00 | 212.00 | MU/P 217207/S | RUB002070 | ||
| 220.00 | 250.00 | 19.00 | 235.00 | RSS 220 250 | RUB002200 | RUB002200 | |
| 225.00 | 245.00 | 16.00 | 235.00 | RSS 225 245 | RUB002250 | ||
| 231.00 | 241.00 | 15.00 | 236.00 | MU/P 241231/S | RUB002310 | ||
| 245.00 | 270.00 | 16.00 | 257.50 | RSS 245 270 | RUB002450 | ||
| 254.00 | 264.00 | 15.00 | 259.00 | MU/P 264254/S | RUB002540 | ||
| 265.00 | 290.00 | 18.00 | 277.50 | RSS 265 290 | RUB002650 | ||
| 270.00 | 290.00 | 18.00 | 280.00 | RSS 270 290 | RUB002700 | ||
| 270.00 | 300.00 | 16.00 | 285.00 | RSS 270 300 | RUB102700 | ||
| 280.00 | 290.00 | 15.00 | 285.00 | MU/P 290280/S | RUB002800 | ||
| 280.00 | 300.00 | 16.00 | 290.00 | RSS 280 300 | RUB102800 | ||
| 305.00 | 320.00 | 18.00 | 312.50 | RSS 305 320 | RUB003050 | ||
| 360.00 | 390.00 | 23.00 | 375.00 | RSS 360 390 | RUB003600 |
