Туркон® Глайд Ринг® Т* PT — размеры, артикулы и подбор
Туркон® Глайд Ринг® Т PT — поршневое уплотнение двойного действия с трапециевидным поперечным сечением. Конструкция развивает идею классического Глайд Ринг: сохраняет компактную форму, снижает трение и помогает избежать Stick-slip при динамической работе.
Подбор
Для замены сравните размеры, сечение профиля, материал и условия работы. Если обозначение отличается у другого производителя, профиль можно подобрать по геометрии и посадочному месту.
Характеристики
ПрофильPT
Типпоршневое уплотнение
КатегорияПоршневые уплотнения
ПроизводительTrelleborg
Размерных строк165
МатериалТуркон® PTFE-композит: T46 — стандарт для гидравлики; варианты T05/T29/T40/T42/T08/TR подбираются по среде и поверхности. O-кольцо: NBR 70 Shore A или FKM 70 Shore A; по исполнению — низкотемпературный NBR или EPDM.
Давлениедо 80 МПа
Температураот -45 °C до +200 °C
Скоростьдо 15 м/с
Быстрый подбор
Нужен аналог или поставка PT? Пришлите артикул, размеры или фото профиля. Подберём решение по геометрии, материалу и условиям работы.
Получить подборРазмеры и артикулы Туркон® Глайд Ринг® Т* PT

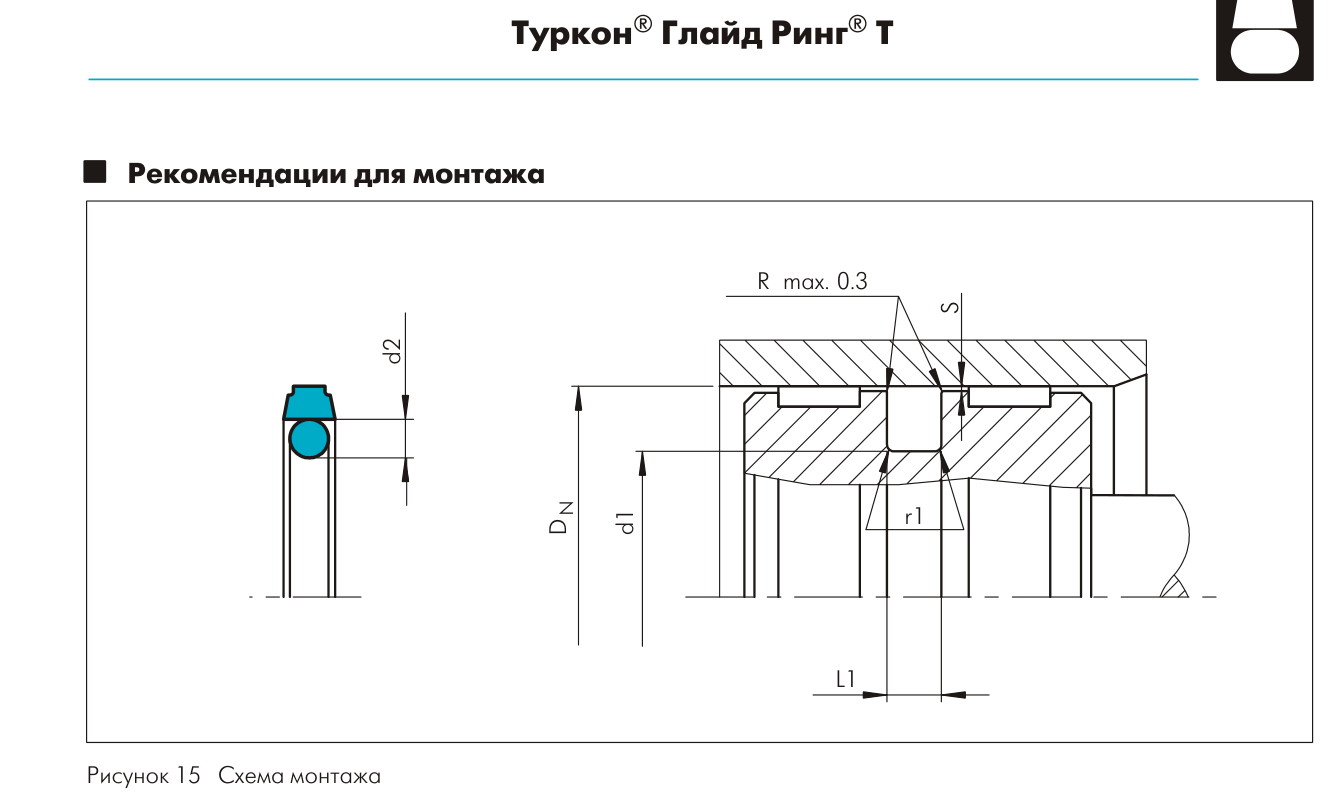

165 строк| Диаметр цилиндра | Диаметр канавки | Ширина канавки | No по каталогу | Размеры О-кольца |
|---|---|---|---|---|
| DN H9 | d1 h9 | L1 +0.2 | ||
| 8.0 | 3.1 | 2.2 | PT0000080 | 2.90 x 1.78 |
| 10.0 | 5.1 | 2.2 | PT0000100 | 4.80 x 1.8 |
| 12.0 | 7.1 | 2.2 | PT0000120 | 6.70 x 1.8 |
| 14.0 | 9.1 | 2.2 | PT0000140 | 8.75 x 1.8 |
| 15.0 | 7.5 | 3.2 | PT0100150 | 7.59 x 2.62 |
| 16.0 | 11.1 | 2.2 | PT0000160 | 10.82 x 1.78 |
| 16.0 | 8.5 | 3.2 | PT0100160 | 7.59 x 2.62 |
| 18.0 | 13.1 | 2.2 | PT0000180 | 12.42 x 1.78 |
| 18.0 | 10.5 | 3.2 | PT0100180 | 9.19 x 2.62 |
| 19.05 | 11.55 | 3.2 | PT0100190 | 10.77 x 2.62 |
| 20.0 | 15.1 | 2.2 | PT0000200 | 14.00 x 1.78 |
| 20.0 | 12.5 | 3.2 | PT0100200 | 12.37 x 2.62 |
| 21.0 | 13.5 | 3.2 | PT0100210 | 12.37 x 2.62 |
| 22.0 | 17.1 | 2.2 | PT0000220 | 17.17 x 1.78 |
| 22.0 | 14.5 | 3.2 | PT0100220 | 13.94 x 2.62 |
| 24.0 | 16.5 | 3.2 | PT0100240 | 15.54 x 2.62 |
| 25.0 | 20.1 | 2.2 | PT0000250 | 18.77 x 1.78 |
| 25.0 | 17.5 | 3.2 | PT0100250 | 17.12 x 2.62 |
| 25.0 | 14.0 | 4.2 | PT0200250 | 13.87 x 3.53 |
| 25.4 | 20.5 | 2.2 | PT0000254 | 17.12 x 2.62 |
| 28.0 | 20.5 | 3.2 | PT0100280 | 20.29 x 2.62 |
| 30.0 | 22.5 | 3.2 | PT0100300 | 21.89 x 2.62 |
| 32.0 | 27.1 | 2.2 | PT0000320 | 26.70 x 1.78 |
| 32.0 | 24.5 | 3.2 | PT0100320 | 23.47 x 2.62 |
| 32.0 | 21.0 | 4.2 | PT0200320 | 20.22 x 3.53 |
| 35.0 | 27.5 | 3.2 | PT0100350 | 26.64 x 2.62 |
| 35.0 | 24.0 | 4.2 | PT0200350 | 23.40 x 3.53 |
| 36.0 | 28.5 | 3.2 | PT0100360 | 28.24 x 2.62 |
| 38.0 | 30.5 | 3.2 | PT0100380 | 29.82 x 2.62 |
| 40.0 | 32.5 | 3.2 | PT0100400 | 31.42 x 2.62 |
| 40.0 | 29.0 | 4.2 | PT0200400 | 28.17 x 3.53 |
| 42.0 | 31.0 | 4.2 | PT0200420 | 29.75 x 3.53 |
| 44.45 | 36.95 | 3.2 | PT0100444 | 36.17 x 2.62 |
| 45.0 | 34.0 | 4.2 | PT0200450 | 32.92 x 3.53 |
| 48.0 | 37.0 | 4.2 | PT0200480 | 36.09 x 3.53 |
| 50.0 | 42.5 | 3.2 | PT0100500 | 40.94 x 2.62 |
| 50.0 | 39.0 | 4.2 | PT0200500 | 37.70 x 3.53 |
| 50.0 | 34.5 | 6.3 | PT0300500 | 32.69 x 5.33 |
| 50.8 | 43.3 | 3.2 | PT0100508 | 42.52 x 2.62 |
| 50.8 | 39.8 | 4.2 | PT0200508 | 37.70 x 3.53 |
| 52.0 | 41.0 | 4.2 | PT0200520 | 40.87 x 3.53 |
| 53.0 | 42.0 | 4.2 | PT0200530 | 40.87 x 3.53 |
| 55.0 | 44.0 | 4.2 | PT0200550 | 44.04 x 3.53 |
| 57.0 | 46.0 | 4.2 | PT0200570 | 44.04 x 3.53 |
| 58.0 | 47.0 | 4.2 | PT0200580 | 47.22 x 3.53 |
| 60.0 | 49.0 | 4.2 | PT0200600 | 47.22 x 3.53 |
| 62.0 | 51.0 | 4.2 | PT0200620 | 50.39 x 3.53 |
| 63.0 | 52.0 | 4.2 | PT0200630 | 50.39 x 3.53 |
| 63.0 | 47.5 | 6.3 | PT0300630 | 46.99 x 5.33 |
| 65.0 | 54.0 | 4.2 | PT0200650 | 53.57 x 3.53 |
| 68.0 | 57.0 | 4.2 | PT0200680 | 56.74 x 3.53 |
| 70.0 | 59.0 | 4.2 | PT0200700 | 56.74 x 3.53 |
| 70.0 | 54.5 | 6.3 | PT0300700 | 53.34 x 5.33 |
| 75.0 | 64.0 | 4.2 | PT0200750 | 63.09 x 3.53 |
| 75.0 | 59.5 | 6.3 | PT0300750 | 56.52 x 3.53 |
| 80.0 | 69.0 | 4.2 | PT0200800 | 66.27 x 3.53 |
| 80.0 | 64.5 | 6.3 | PT0300800 | 62.87 x 5.33 |
| 80.0 | 59.0 | 8.1 | PT0400800 | 58 x 7.0 |
| 82.5 | 67.0 | 6.3 | PT0300825 | 66.04 x 5.33 |
| 85.0 | 69.5 | 6.3 | PT0300850 | 69.22 x 5.33 |
| 85.0 | 64.0 | 8.1 | PT0400850 | 63 x 7.0 |
| 90.0 | 79.0 | 4.2 | PT0200900 | 78.97 x 3.53 |
| 90.0 | 74.5 | 6.3 | PT0300900 | 72.39 x 5.33 |
| 90.0 | 69.0 | 8.1 | PT0400900 | 68 x 7.0 |
| 95.0 | 84.0 | 4.2 | PT0200950 | 82.14 x 3.53 |
| 95.0 | 79.5 | 6.3 | PT0300950 | 78.74 x 5.33 |
| 95.0 | 74.0 | 8.1 | PT0400950 | 73 x 7.0 |
| 100.0 | 89.0 | 4.2 | PT0201000 | 88.49 x 3.53 |
| 100.0 | 84.5 | 6.3 | PT0301000 | 81.92 x 5.33 |
| 100.0 | 79.0 | 8.1 | PT0401000 | 78 x 7.0 |
| 101.6 | 86.1 | 6.3 | PT0301016 | 85.09 x 5.33 |
| 105.0 | 94.0 | 4.2 | PT0201050 | 91.67 x 3.53 |
| 105.0 | 89.5 | 6.3 | PT0301050 | 88.27 x 5.33 |
| 108.0 | 92.5 | 6.3 | PT0301080 | 91.44 x 5.33 |
| 110.0 | 99.0 | 4.2 | PT0201100 | 98.02 x 3.53 |
| 110.0 | 94.5 | 6.3 | PT0301100 | 91.44 x 5.33 |
| 110.0 | 89.0 | 8.1 | PT0401100 | 88 x 7.0 |
| 115.0 | 99.5 | 6.3 | PT0301150 | 97.79 x 5.33 |
| 120.0 | 109.0 | 4.2 | PT0201200 | 107.54 x 3.53 |
| 120.0 | 104.5 | 6.3 | PT0301200 | 100.97 x 5.33 |
| 120.0 | 99.0 | 8.1 | PT0401200 | 98 x 7.0 |
| 125.0 | 114.0 | 4.2 | PT0201250 | 113.89 x 3.53 |
| 125.0 | 109.5 | 6.3 | PT0301250 | 107.32 x 5.33 |
| 125.0 | 104.0 | 8.1 | PT0401250 | 103 x 7.0 |
| 127.0 | 111.5 | 6.3 | PT0301270 | 110.49 x 5.33 |
| 130.0 | 114.5 | 6.3 | PT0301300 | 113.67 x 5.33 |
| 130.0 | 109.0 | 8.1 | PT0401300 | 108 x 7.0 |
| 132.0 | 121.0 | 4.2 | PT0201320 | 120.24 x 3.53 |
| 135.0 | 114.0 | 8.1 | PT0401350 | 113.67 x 7.0 |
| 140.0 | 124.5 | 6.3 | PT0301400 | 123.19 x 5.33 |
| 140.0 | 119.0 | 8.1 | PT0401400 | 116.84 x 7.0 |
| 145.0 | 129.5 | 6.3 | PT0301450 | 126.37 x 5.33 |
| 145.0 | 124.0 | 8.1 | PT0401450 | 123.19 x 7.0 |
| 150.0 | 134.5 | 6.3 | PT0301500 | 132.72 x 5.33 |
| 150.0 | 129.0 | 8.1 | PT0401500 | 126.37 x 7.0 |
| 155.0 | 134.0 | 8.1 | PT0401550 | 132.72 x 7.0 |
| 160.0 | 144.5 | 6.3 | PT0301600 | 142.24 x 5.33 |
| 160.0 | 139.0 | 8.1 | PT0401600 | 135.89 x 7.0 |
| 165.0 | 144.0 | 8.1 | PT0401650 | 142.24 x 7.0 |
| 170.0 | 149.0 | 8.1 | PT0401700 | 145.42 x 7.0 |
| 175.0 | 154.0 | 8.1 | PT0401750 | 151.77 x 7.0 |
| 180.0 | 164.5 | 6.3 | PT0301800 | 164.47 x 5.33 |
| 180.0 | 159.0 | 8.1 | PT0401800 | 158.12 x 7.0 |
| 190.0 | 169.0 | 8.1 | PT0401900 | 164.47 x 7.0 |
| 194.0 | 178.5 | 6.3 | PT0301940 | 177.17 x 5.33 |
| 200.0 | 184.5 | 6.3 | PT0302000 | 183.52 x 5.33 |
| 200.0 | 179.0 | 8.1 | PT0402000 | 177.17 x 7.0 |
| 205.0 | 184.0 | 8.1 | PT0402050 | 183.52 x 7.0 |
| 210.0 | 189.0 | 8.1 | PT0402100 | 183.52 x 7.0 |
| 215.0 | 194.0 | 8.1 | PT0402150 | 189.87 x 7.0 |
| 220.0 | 199.0 | 8.1 | PT0402200 | 196.22 x 7.0 |
| 230.0 | 214.5 | 6.3 | PT0302300 | 208.92 x 5.33 |
| 230.0 | 209.0 | 8.1 | PT0402300 | 202.57 x 7.0 |
| 240.0 | 219.0 | 8.1 | PT0402400 | 215.27 x 7.0 |
| 250.0 | 134.5 | 6.3 | PT0302500 | 234.32 x 5.33 |
| 250.0 | 229.0 | 8.1 | PT0402500 | 227.97 x 7.0 |
| 250.0 | 225.5 | 8.1 | PT0802500 | 215.27 x 7.0 |
| 254.0 | 233.0 | 8.1 | PT0402540 | 227.97 x 7.0 |
| 260.0 | 239.0 | 8.1 | PT0402600 | 240.67 x 7.0 |
| 265.0 | 244.0 | 8.1 | PT0402650 | 240.67 x 7.0 |
| 268.0 | 247.0 | 8.1 | PT0402680 | 240.67 x 7.0 |
| 270.0 | 249.0 | 8.1 | PT0402700 | 240.67 x 7.0 |
| 280.0 | 259.0 | 8.1 | PT0402800 | 253.37 x 7.0 |
| 290.0 | 269.0 | 8.1 | PT0402900 | 266.07 x 7.0 |
| 300.0 | 279.0 | 8.1 | PT0403000 | 278.77 x 7.0 |
| 300.0 | 275.5 | 8.1 | PT0803000 | 266.07 x 7.0 |
| 304.8 | 283.8 | 8.1 | PT0403048 | 278.77 x 7.0 |
| 310.0 | 289.0 | 8.1 | PT0403100 | 278.77 x 7.0 |
| 320.0 | 299.0 | 8.1 | PT0403200 | 291.47 x 7.0 |
| 320.0 | 295.5 | 8.1 | PT0803200 | 291.47 x 7.0 |
| 330.0 | 305.5 | 8.1 | PT0803300 | 304.17 x 7.0 |
| 340.0 | 315.5 | 8.1 | PT0803400 | 316.87 x 7.0 |
| 350.0 | 325.5 | 8.1 | PT0803500 | 316.87 x 7.0 |
| 360.0 | 335.5 | 8.1 | PT0803600 | 329.57 x 7.0 |
| 370.0 | 345.5 | 8.1 | PT0803700 | 342.27 x 7.0 |
| 380.0 | 355.5 | 8.1 | PT0803800 | 354.97 x 7.0 |
| 400.0 | 375.5 | 8.1 | PT0804000 | 367.67 x 7.0 |
| 420.0 | 395.5 | 8.1 | PT0804200 | 393.07 x 7.0 |
| 430.0 | 405.5 | 8.1 | PT0804300 | 405.26 x 7.0 |
| 440.0 | 415.5 | 8.1 | PT0804400 | 405.26 x 7.0 |
| 450.0 | 425.5 | 8.1 | PT0804500 | 417.96 x 7.0 |
| 460.0 | 435.5 | 8.1 | PT0804600 | 430.66 x 7.0 |
| 480.0 | 455.5 | 8.1 | PT0804800 | 456.06 x 7.0 |
| 500.0 | 475.5 | 8.1 | PT0805000 | 468.76 x 7.0 |
| 555.0 | 530.5 | 8.1 | PT0805550 | 506.86 x 7.0 |
| 600.0 | 575.5 | 8.1 | PT0806000 | 557.66 x 7.0 |
| 640.0 | 615.5 | 8.1 | PT0806400 | 608.08 x 7.0 |
| 660.0 | 635.5 | 8.1 | PT0806600 | 633.48 x 7.0 |
| 700.0 | 672.0 | 9.5 | PT0507000 | 670 x 8.4 |
| 710.0 | 682.0 | 9.5 | PT0507100 | 680 x 8.4 |
| 740.0 | 712.0 | 9.5 | PT0507400 | 710 x 8.4 |
| 780.0 | 752.0 | 9.5 | PT0507800 | 750 x 8.4 |
| 800.0 | 772.0 | 9.5 | PT0508000 | 770 x 8.4 |
| 900.0 | 872.0 | 9.5 | PT0509000 | 870 x 8.4 |
| 1000.0 | 972.0 | 9.5 | PT05X1000 | 970 x 8.4 |
| 1000.0 | 962.0 | 13.8 | PT06X1000 | 960 x 12.0 |
| 1050.0 | 1022.0 | 9.5 | PT05X1050 | 1020 x 8.4 |
| 1065.0 | 1027.0 | 13.8 | PT06X1065 | 1025 x 12.0 |
| 1070.0 | 1032.0 | 13.8 | PT06X1070 | 1030 x 12.0 |
| 1200.0 | 1172.0 | 9.5 | PT05X1200 | 1170 x 8.4 |
| 1200.0 | 1162.0 | 13.8 | PT06X1200 | 1160 x 12.0 |
| 1225.0 | 1187.0 | 13.8 | PT06X1225 | 1185 x 12.0 |
| 1500.0 | 1462.0 | 13.8 | PT06X1500 | 1460 x 12.0 |
| 2000.0 | 1962.0 | 13.8 | PT06X2000 | 1960 x 12.0 |
| 2700.0 | 2662.0 | 13.8 | PT06X2700 | 2660 x 12.0 |
