K23 — поршневое уплотнение — размеры, артикулы и подбор
K23 — поршневое уплотнение Kastas для герметизации поршня в гидроцилиндре. Рабочие кромки удерживают давление между полостями цилиндра, а размерная таблица помогает подобрать профиль по диаметру, ширине канавки, материалу и артикулу.
Подбор
Для замены сравните размеры, сечение профиля, материал и условия работы. Если обозначение отличается у другого производителя, профиль можно подобрать по геометрии и посадочному месту.
Характеристики
ПрофильK23
Типпоршневое уплотнение
КатегорияПоршневые уплотнения
ПроизводительKastas
МатериалPU / NBR (коды: PU9201 / NB9001)
Давлениедо 400 bar; до 150 bar
Температураот -40 до +100 °C; от -30 до +105 °C
Скоростьдо 0,5 м/с
Размерных строк211
Быстрый подбор
Нужен аналог или поставка K23? Пришлите артикул, размеры или фото профиля. Подберём решение по геометрии, материалу и условиям работы.
Получить подбор

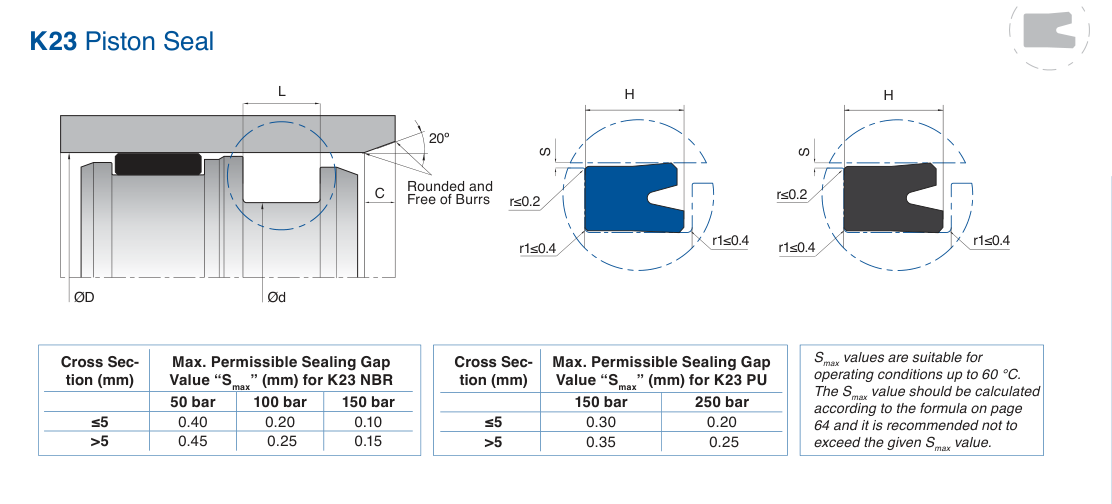

Размеры и артикулы K23 — поршневое уплотнение
211 строк| KASTAŞ NO | D (H10) | d (h11) | L (+0.2/-0) | H | C | KASTAŞ CODE NBR | KASTAŞ CODE PU |
|---|---|---|---|---|---|---|---|
| K23-016/4 | 16 | 10 | 9 | 8 | 3 | 10013558 | 10013559 |
| K23-016/5 | 16 | 8 | 6.5 | 5.5 | 4 | 10013560 | 10013562 |
| K23-016/7 | 16 | 11 | 4 | 3.5 | 3 | - | 10013564 |
| K23-017 | 17.46 | 12.05 | 3.5 | 3.17 | 3 | 10013565 | 10013568 |
| K23-019 | 19.05 | 12.7 | 3.5 | 3.17 | 3 | 10013569 | 10013570 |
| K23-020 | 20 | 14 | 6.5 | 5.5 | 3 | 10013572 | 10013575 |
| K23-020/1 | 20 | 14 | 4.7 | 4.2 | 3 | 10013576 | 10013578 |
| K23-020/3 | 20 | 12 | 6.5 | 5.5 | 4 | 10013581 | 10013582 |
| K23-020/4 | 20.63 | 14.28 | 7 | 6.35 | 3 | 10013583 | 10013584 |
| K23-022 | 22 | 13 | 8 | 7 | 4 | 10013585 | 10013586 |
| K23-022/1 | 22 | 10 | 9 | 8 | 5 | 10013587 | 10013588 |
| K23-022/2 | 22.22 | 12.7 | 7 | 6.35 | 4 | 10013589 | 10013590 |
| K23-022/3 | 22 | 16 | 6.5 | 5.5 | 3 | 10013591 | 10013592 |
| K23-022/4 | 22 | 16 | 4.5 | 4 | 3 | 10013593 | 10013594 |
| K23-025/2 | 25 | 19 | 3.5 | 3 | 3 | 10013599 | 10013602 |
| K23-025/3 | 25 | 19 | 7 | 6 | 3 | 10013603 | 10013605 |
| K23-025/5 | 25 | 15 | 6 | 5 | 4.5 | 10013609 | 10013611 |
| K23-025/6 | 25 | 17 | 6.5 | 5.5 | 4 | 10013613 | 10013616 |
| K23-026 | 26 | 18 | 8 | 7 | 4 | 10013617 | 10013619 |
| K23-026/2 | 26 | 18 | 6.5 | 5.5 | 4 | 10013621 | 10013623 |
| K23-026/3 | 26.99 | 17.46 | 7 | 6.35 | 4 | 10013624 | 10013625 |
| K23-028 | 28 | 16 | 10 | 9 | 5 | 10013626 | 10013627 |
| K23-028/1 | 28.57 | 19.05 | 7 | 6.35 | 4 | 10013628 | 10013629 |
| K23-030 | 30 | 22 | 7 | 6 | 4 | 10013630 | 10013634 |
| K23-030/1 | 30 | 20 | 8 | 7 | 4.5 | 10013635 | 10013636 |
| K23-030/2 | 30 | 15 | 11 | 10 | 5.5 | 10013638 | 10013639 |
| K23-031/1 | 31.75 | 19.05 | 7 | 6.35 | 6 | 10013643 | 10013644 |
| K23-031/2 | 31.75 | 19.05 | 8.7 | 7.93 | 6 | 10013645 | 10013646 |
| K23-032 | 32 | 24 | 6.5 | 5.5 | 4 | 10013648 | 10013651 |
| K23-032/1 | 32 | 22 | 8 | 7 | 4.5 | 10013654 | 10013656 |
| K23-032/2 | 32 | 22 | 6 | 5 | 4.5 | 10013657 | 10013658 |
| K23-034 | 34.92 | 22.22 | 7 | 6.35 | 6 | 10013659 | 10013660 |
| K23-035 | 35 | 25 | 7.5 | 6.5 | 4.5 | 10013661 | 10013664 |
| K23-035/1 | 35 | 25 | 8 | 7 | 4.5 | 10013665 | 10013667 |
| K23-035/2 | 35 | 27 | 11 | 10 | 4 | 10013668 | 10013671 |
| K23-035/3 | 35 | 25 | 9 | 8 | 4.5 | 10013672 | 10013673 |
| K23-035/4 | 35 | 20 | 11 | 10 | 5.5 | 10013674 | 10013675 |
| K23-035/6 | 35 | 27 | 6 | 5 | 4 | - | 10013676 |
| K23-036 | 36 | 28 | 8 | 7 | 4 | 10013678 | 10013680 |
| K23-036/2 | 36 | 24 | 7 | 6 | 5 | 10013681 | 10013683 |
| K23-036/3 | 36.51 | 25.4 | 7 | 6.35 | 5 | 10013684 | 10013685 |
| K23-038 | 38.1 | 25.4 | 8.7 | 7.93 | 6 | 10013688 | 10013689 |
| K23-038/1 | 38 | 28 | 8 | 7 | 4.5 | 10013690 | 10013691 |
| K23-039 | 39 | 32 | 6 | 5 | 3.5 | 10013693 | 10013694 |
| K23-039/2 | 39.69 | 26.99 | 7 | 6.35 | 6 | 10013695 | 10013696 |
| K23-040/2 | 40 | 30 | 8 | 7 | 4.5 | 10013698 | 10013702 |
| K23-040/3 | 40 | 30 | 7 | 6 | 4.5 | 10013704 | 10013706 |
| K23-040/4 | 40 | 28 | 11 | 10 | 5 | 10013709 | 10013711 |
| K23-040/5 | 40 | 28 | 10 | 9 | 5 | 10013712 | 10013715 |
| K23-040/6 | 40 | 30 | 6 | 5 | 4.5 | 10013716 | 10013718 |
| K23-040/7 | 40 | 32 | 6 | 5.5 | 4 | 10013720 | 10013722 |
| K23-040/8 | 40 | 32 | 3.5 | 3.25 | 4 | 10013723 | 10013724 |
| K23-041 | 41.27 | 30.16 | 7 | 6.35 | 5 | 10013727 | 10013728 |
| K23-042 | 42.86 | 30.16 | 10.5 | 9.52 | 6 | 10013729 | 10013730 |
| K23-043 | 43 | 35 | 10 | 9 | 4 | 10013731 | 10013732 |
| K23-043/1 | 43 | 38 | 4.3 | 3.8 | 2.5 | 10013733 | 10013735 |
| K23-044 | 44.45 | 28.57 | 10.5 | 9.52 | 6 | 10013736 | 10013737 |
| K23-044/1 | 44.45 | 34.92 | 8 | 7 | 4 | 10013738 | 10013739 |
| K23-045 | 45 | 38 | 7 | 6 | 3.5 | 10013740 | 10013742 |
| K23-045/1 | 45 | 37 | 8 | 7 | 4 | 10013743 | 10013744 |
| K23-045/2 | 45 | 35 | 7 | 6 | 4.5 | 10013745 | 10013748 |
| K23-045/3 | 45 | 38 | 9 | 8 | 3.5 | - | 10013750 |
| K23-047 | 47.62 | 31.75 | 8.7 | 7.93 | 6 | 10013753 | 10013754 |
| K23-049 | 49.21 | 35.23 | 10.5 | 9.52 | 5.5 | 10013756 | 10013757 |
| K23-050/3 | 50 | 40 | 8 | 7 | 4.5 | 10013758 | 10013761 |
| K23-050/4 | 50 | 40 | 6 | 5 | 4.5 | 10013764 | 10013768 |
| K23-050/5 | 50 | 38 | 7 | 6 | 5 | 10013770 | 10013772 |
| K23-050/6 | 50 | 42 | 11 | 10 | 4 | 10013773 | 10013774 |
| K23-050/7 | 50.8 | 41.27 | 5.3 | 4.76 | 4 | 10013776 | 10013778 |
| K23-050/8 | 50 | 40 | 7 | 6 | 5 | 10013779 | 10013781 |
| K23-050/9 | 50.8 | 41.27 | 7.8 | 7.14 | 4 | 10013784 | 10013785 |
| K23-052 | 52 | 42 | 6 | 5 | 4.5 | 10013786 | 10013787 |
| K23-053/1 | 53.97 | 38.1 | 10.5 | 9.52 | 6 | 10013788 | 10013789 |
| K23-053/2 | 53.97 | 41.27 | 10.5 | 9.52 | 6 | 10013790 | 10013791 |
| K23-055 | 55 | 45 | 8 | 7 | 4.5 | 10013792 | 10013795 |
| K23-055/1 | 55 | 45 | 11 | 10 | 4.5 | 10013796 | 10013797 |
| K23-055/2 | 55 | 45 | 8.5 | 7.5 | 4.5 | 10013798 | 10013799 |
| K23-055/3 | 55 | 45 | 7 | 6 | 4.5 | - | 10013800 |
| K23-055/4 | 55 | 47 | 9 | 8 | 4.5 | - | 10013802 |
| K23-056 | 56 | 46 | 8 | 7 | 4.5 | 10013804 | 10013807 |
| K23-057/1 | 57.15 | 41.27 | 10.5 | 9.52 | 6 | 10013809 | 10013810 |
| K23-057/2 | 57.15 | 44.45 | 7 | 6.35 | 6 | 10013811 | 10013812 |
| K23-060/1 | 60 | 44 | 13 | 12 | 6 | 10013815 | 10013816 |
| K23-060/2 | 60 | 50 | 11 | 10 | 4.5 | 10013818 | 10013819 |
| K23-060/3 | 60 | 50 | 8 | 7 | 4.5 | 10013820 | 10013823 |
| K23-060/4 | 60 | 50 | 8.3 | 7.3 | 4.5 | 10013825 | 10013826 |
| K23-060/5 | 60.32 | 47.62 | 7 | 6.35 | 6 | 10013827 | 10013828 |
| K23-060/6 | 60 | 50 | 7 | 6 | 4.5 | 10013829 | 10013830 |
| K23-062/1 | 62 | 52 | 8 | 7 | 4.5 | 10013833 | 10013834 |
| K23-063 | 63 | 53 | 7 | 6 | 4.5 | 10013835 | 10013839 |
| K23-063/1 | 63 | 53 | 4.8 | 4.3 | 4.5 | 10013842 | 10013845 |
| K23-063/3 | 63 | 53 | 8 | 7 | 4.5 | 10013848 | 10013851 |
| K23-063/4 | 63 | 50 | 10 | 9 | 5 | - | 10013852 |
| K23-063/5 | 63.5 | 53.97 | 7 | 6.35 | 4 | 10013853 | 10013854 |
| K23-063/6 | 63.5 | 45.7 | 9.8 | 8.85 | 6 | 10013855 | 10013856 |
| K23-063/7 | 63.5 | 47.62 | 10.5 | 9.52 | 6 | 10013857 | 10013858 |
| K23-063/8 | 63 | 48 | 13.2 | 12 | 6 | 10013859 | 10013860 |
| K23-063/9 | 63.5 | 47.63 | 14 | 12.7 | 6 | - | 10013861 |
| K23-065 | 65 | 55 | 8 | 7 | 4.5 | 10013862 | 10013864 |
| K23-065/1 | 65 | 55 | 7 | 6 | 4.5 | - | 10013865 |
| K23-065/2 | 65 | 57 | 9 | 8 | 4 | - | 10013868 |
| K23-066 | 66.67 | 50.8 | 9.8 | 8.85 | 6 | 10013870 | 10013871 |
| K23-069 | 69.85 | 50.8 | 14 | 12.7 | 6 | 10013872 | 10013873 |
| K23-069/1 | 69.85 | 53.97 | 8.7 | 7.93 | 6 | 10013874 | 10013875 |
| K23-070/1 | 70 | 50 | 15 | 14 | 6 | 10013877 | 10013879 |
| K23-070/2 | 70 | 60 | 11 | 10 | 4.5 | 10013880 | 10013882 |
| K23-070/4 | 70 | 62 | 9 | 8 | 4 | 10013886 | 10013888 |
| K23-070/5 | 70 | 60 | 8 | 7 | 4.5 | 10013889 | 10013891 |
| K23-070/6 | 70 | 60 | 7 | 6 | 4.5 | - | 10013893 |
| K23-073 | 73.02 | 63.5 | 6 | 5.56 | 4 | 10013897 | 10013900 |
| K23-075 | 75 | 65 | 8.5 | 7.5 | 4.5 | 10013901 | 10013903 |
| K23-075/1 | 75 | 63 | 9.5 | 8.5 | 5 | 10013904 | 10013905 |
| K23-075/2 | 75 | 65 | 7 | 6 | 4.5 | - | 10013907 |
| K23-076/1 | 76.2 | 63.5 | 7 | 6.35 | 5.5 | - | 10013910 |
| K23-076/2 | 76.2 | 58.04 | 9.6 | 8.73 | 6 | 10013911 | 10013912 |
| K23-080/3 | 80 | 68 | 9.5 | 8.5 | 5 | 10013931 | 10013934 |
| K23-080/4 | 80 | 70 | 8 | 7 | 4.5 | 10013936 | 10013937 |
| K23-080/5 | 80 | 71 | 7.5 | 6.5 | 4 | - | 10013938 |
| K23-080/6 | 80 | 72 | 13 | 12 | 4 | 10013940 | 10013943 |
| K23-080/9 | 80 | 70 | 13 | 12 | 4.5 | - | 10013948 |
| K23-080/10 | 80 | 65 | 11 | 10 | 6 | 10013916 | 10013919 |
| K23-080/11 | 80 | 70 | 7 | 6 | 4.5 | - | 10013922 |
| K23-080/12 | 80 | 65 | 10 | 9 | 6 | - | 10013925 |
| K23-080/13 | 80 | 60 | 13 | 12 | 6 | - | 10013928 |
| K23-082 | 82 | 70 | 9 | 8 | 5 | - | 10013949 |
| K23-085/2 | 85 | 75 | 7 | 6 | 4.5 | - | 10013956 |
| K23-088 | 88.9 | 76.2 | 7 | 6.35 | 5.5 | - | 10013959 |
| K23-090/1 | 90 | 80 | 7 | 6 | 4.5 | - | 10013963 |
| K23-090/2 | 90 | 80 | 8 | 7 | 4.5 | - | 10013966 |
| K23-090/3 | 90 | 75 | 10 | 9 | 6 | - | 10013967 |
| K23-095 | 95.25 | 76.2 | 10.5 | 9.52 | 6 | - | 10013971 |
| K23-095/2 | 95 | 80 | 10 | 9 | 6 | - | 10013973 |
| K23-100 | 100 | 85 | 10 | 9 | 5.5 | 10013977 | 10013979 |
| K23-100/1 | 100 | 90 | 9.5 | 8.5 | 4.5 | 10013983 | 10013985 |
| K23-100/3 | 100 | 88 | 9.5 | 8.5 | 5 | 10013989 | 10013992 |
| K23-100/6 | 100 | 90 | 8 | 7.2 | 4.5 | 10013998 | 10013999 |
| K23-100/7 | 100 | 85 | 13 | 12 | 5.5 | 10014000 | 10014004 |
| K23-100/8 | 100 | 90 | 7.5 | 6.5 | 4.5 | 10014005 | 10014008 |
| K23-100/10 | 100 | 85 | 12.4 | 11.4 | 5.5 | - | 10013986 |
| K23-100/11 | 100 | 80 | 13 | 12 | 6 | - | 10013987 |
| K23-110 | 110 | 95 | 11 | 10 | 5.5 | 10014020 | 10014022 |
| K23-110/2 | 110 | 100 | 8 | 7 | 4.5 | - | 10014025 |
| K23-112 | 112 | 98 | 10 | 9 | 5.5 | - | 10014027 |
| K23-115 | 115 | 100 | 7 | 6 | 5.5 | - | 10014029 |
| K23-115/1 | 115 | 95 | 13 | 12 | 6 | - | 10014030 |
| K23-120/1 | 120 | 110 | 13 | 12 | 4.5 | - | 10014033 |
| K23-120/2 | 120 | 100 | 13 | 12 | 6 | - | 10014034 |
| K23-120/3 | 120 | 105 | 10 | 9 | 6 | - | 10014036 |
| K23-120/5 | 120 | 95 | 16 | 15 | 7 | - | 10014039 |
| K23-125 | 125 | 105 | 13 | 12 | 6 | 10014041 | 10014045 |
| K23-125/3 | 125 | 110 | 11 | 10 | 5.5 | 10014049 | 10014054 |
| K23-125/5 | 125 | 115 | 8.2 | 7.2 | 4.5 | 10014056 | 10014059 |
| K23-125/6 | 125 | 105 | 16 | 15 | 6 | 10014060 | 10014062 |
| K23-125/8 | 125 | 110 | 10 | 9 | 6 | - | 10014064 |
| K23-127 | 127 | 113 | 11 | 10 | 5.5 | - | 10014068 |
| K23-130 | 130 | 110 | 13 | 12 | 6 | 10014072 | 10014073 |
| K23-130/2 | 130 | 115 | 10 | 9 | 6 | - | 10014075 |
| K23-135 | 135 | 120 | 10 | 9 | 6 | - | 10014076 |
| K23-140 | 140 | 120 | 17 | 16 | 6 | 10014077 | 10014079 |
| K23-140/1 | 140 | 125 | 16 | 15 | 5.5 | - | 10014081 |
| K23-140/2 | 140 | 120 | 16 | 15 | 6 | - | 10014082 |
| K23-140/3 | 140 | 125 | 10 | 9 | 5.5 | - | 10014085 |
| K23-140/6 | 140 | 120 | 13 | 12 | 6 | - | 10014093 |
| K23-145 | 145 | 130 | 11 | 10 | 6 | 10014094 | 10014095 |
| K23-150 | 150 | 135 | 9 | 8 | 5.5 | 10014099 | 10014101 |
| K23-150/1 | 150 | 135 | 10 | 9 | 5.5 | - | 10014102 |
| K23-152 | 152 | 130 | 16 | 15 | 7 | - | 10014105 |
| K23-152/1 | 152 | 130 | 11 | 10 | 7 | - | 10014106 |
| K23-154 | 154 | 138 | 9 | 8 | 6 | - | 10014110 |
| K23-160 | 160 | 140 | 15 | 14 | 6 | 10014113 | 10014118 |
| K23-160/1 | 160 | 145 | 15 | 14 | 5.5 | 10014120 | 10014122 |
| K23-160/2 | 160 | 145 | 10 | 9 | 5.5 | - | 10014124 |
| K23-170 | 170 | 148 | 16 | 15 | 7 | 10014128 | 10014129 |
| K23-170/1 | 170 | 145 | 20 | 19 | 7 | - | 10014130 |
| K23-170/2 | 170 | 150 | 16 | 15 | 6 | - | 10014131 |
| K23-170/3 | 170 | 155 | 10 | 9 | 6 | - | 10014132 |
| K23-175 | 175 | 155 | 15 | 14 | 6 | 10014134 | 10014135 |
| K23-180 | 180 | 160 | 10 | 9 | 6 | 10014137 | 10014139 |
| K23-180/1 | 180 | 160 | 15 | 14 | 6 | 10014140 | 10014143 |
| K23-180/2 | 180 | 165 | 10 | 9 | 5.5 | - | 10014144 |
| K23-180/3 | 180 | 160 | 13 | 12 | 6 | - | 10014146 |
| K23-180/4 | 180 | 160 | 17 | 16 | 5 | - | 10014148 |
| K23-190/2 | 190 | 170 | 17 | 16 | 6 | - | 10014153 |
| K23-200 | 200 | 175 | 17 | 16 | 7 | 10014154 | 10014156 |
| K23-200/1 | 200 | 180 | 15 | 14 | 6 | 10014157 | 10014161 |
| K23-200/3 | 200 | 170 | 19 | 18 | 8 | - | 10014167 |
| K23-203 | 203 | 184 | 16 | 15 | 6 | - | 10014169 |
| K23-210 | 210 | 185 | 17 | 16 | 7 | - | 10014170 |
| K23-215 | 215 | 197 | 8.3 | 7.3 | 6 | - | 10014175 |
| K23-220 | 220 | 195 | 17 | 16 | 7 | - | 10014177 |
| K23-220/1 | 220 | 200 | 16 | 15 | 6 | - | 10014178 |
| K23-230 | 230 | 205 | 17 | 16 | 7 | - | 10014184 |
| K23-250 | 250 | 230 | 15 | 14 | 6 | 10014190 | 10014195 |
| K23-250/1 | 250 | 238 | 15 | 14 | 5 | - | 10014196 |
| K23-250/2 | 250 | 230 | 16 | 15 | 6 | - | 10014197 |
| K23-260 | 260 | 240 | 17 | 16 | 6 | - | 10014200 |
| K23-260/1 | 260 | 235 | 17 | 16 | 7 | - | 10014201 |
| K23-280 | 280 | 250 | 19 | 18 | 8 | - | 10014203 |
| K23-280/1 | 280 | 245 | 21 | 19 | 8.5 | - | 10014204 |
| K23-300 | 300 | 270 | 13 | 12 | 8 | 10014209 | 10014210 |
| K23-300/1 | 300 | 288 | 15 | 14 | 5 | - | 10014212 |
| K23-300/2 | 300 | 270 | 16 | 15 | 8 | - | 10014213 |
| K23-310 | 310 | 278 | 20 | 18 | 8 | - | 10014214 |
| K23-320 | 320 | 290 | 21 | 20 | 8 | - | 10014215 |
| K23-320/1 | 320 | 295 | 19 | 18 | 7 | - | 10014217 |
| K23-360 | 360 | 330 | 21 | 20 | 8 | 10014222 | 10014223 |
| K23-360/1 | 360 | 320 | 24 | 23 | 10 | - | 10014224 |
| K23-380 | 380 | 345 | 21 | 20 | 9 | - | 10014227 |
| K23-380/1 | 380 | 350 | 27 | 26 | 8 | - | 10014228 |
| K23-430 | 430 | 400 | 27 | 26 | 8 | - | 10014230 |
| K23-450 | 450 | 420 | 23 | 22 | 8 | - | 10014233 |
